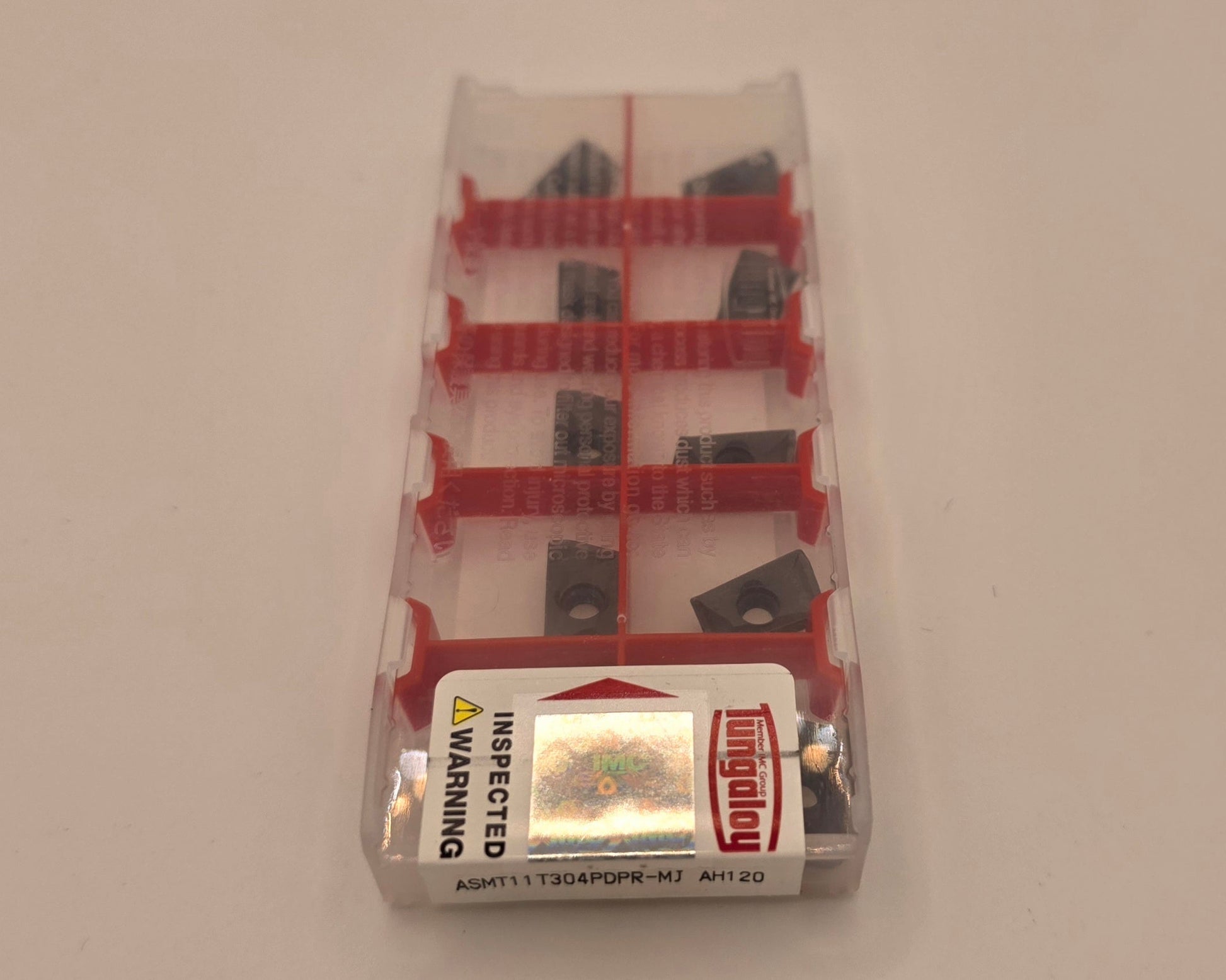

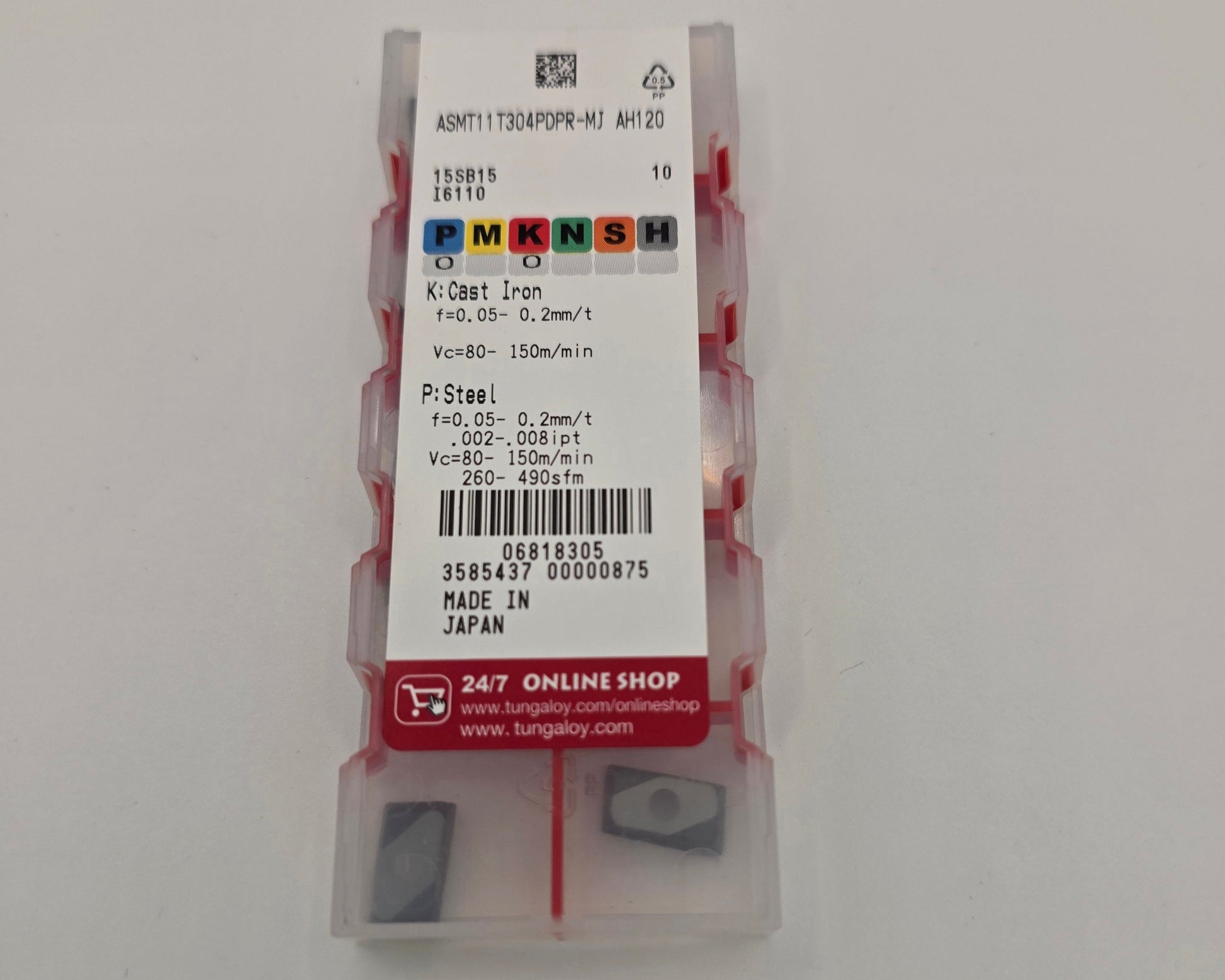

ASMT11T304PDPR MJ AH120 - Tungaloy (10 Pack)

High-performance ASMT11T304PDPR-MJ carbide milling insert with AH120 grade.

Designed for reliable performance in steel milling applications, the ASMT11T304PDPR-MJ with Tungaloy’s AH120 grade provides excellent wear resistance, stable edge performance, and smooth cutting action. The MJ chipbreaker is designed for general-purpose milling and helps support stable chip formation, reduced cutting resistance, and dependable tool life in production machining environments.

AH120 is a TiAlN PVD-coated carbide grade suitable for milling steel and related materials, making it a strong choice for shoulder milling, face milling, and general CNC milling applications. Tungaloy lists this insert with a 6.7 mm inscribed circle, 3.7 mm thickness, 1.4 mm wiper edge length, and TiAlN coating.

✔ Genuine Tungaloy Product
✔ In Stock – Ships from USA
✔ Pack of 10 Inserts
✔ Ships in 1 Business Day

Specifications

Manufacturer: Tungaloy
Insert Style: ASMT11T304PDPR-MJ
Grade: AH120
Chipbreaker / Geometry: MJ
Application: General-Purpose Milling
Workpiece Material: Steel
Coating: TiAlN PVD-Coated Carbide
Insert Shape: Parallelogram / Rhomboid Milling Insert
Insert Size Code: 11T304
Inscribed Circle: 0.264" / 6.7 mm
Thickness: 0.146" / 3.7 mm
Corner Radius: 0.016" / 0.4 mm
Wiper Edge Length: 1.4 mm
Maximum Depth of Cut: 0.417" / 10.6 mm
Cutting Direction: Right Hand
Cutter Series Compatibility: Tungaloy EPS11 Series
Quantity: 10 Inserts per Pack

Recommended For

Shoulder milling
Face milling
General CNC milling
Steel machining
Medium-duty milling applications
Production machining requiring stable tool life
Applications requiring smooth cutting and reliable chip control

Why Choose AH120?

Excellent wear resistance in steel milling
Stable cutting edge for dependable machining
TiAlN PVD coating helps improve tool life
Good choice for general-purpose milling applications
MJ chipbreaker supports smooth cutting and stable chip evacuation
