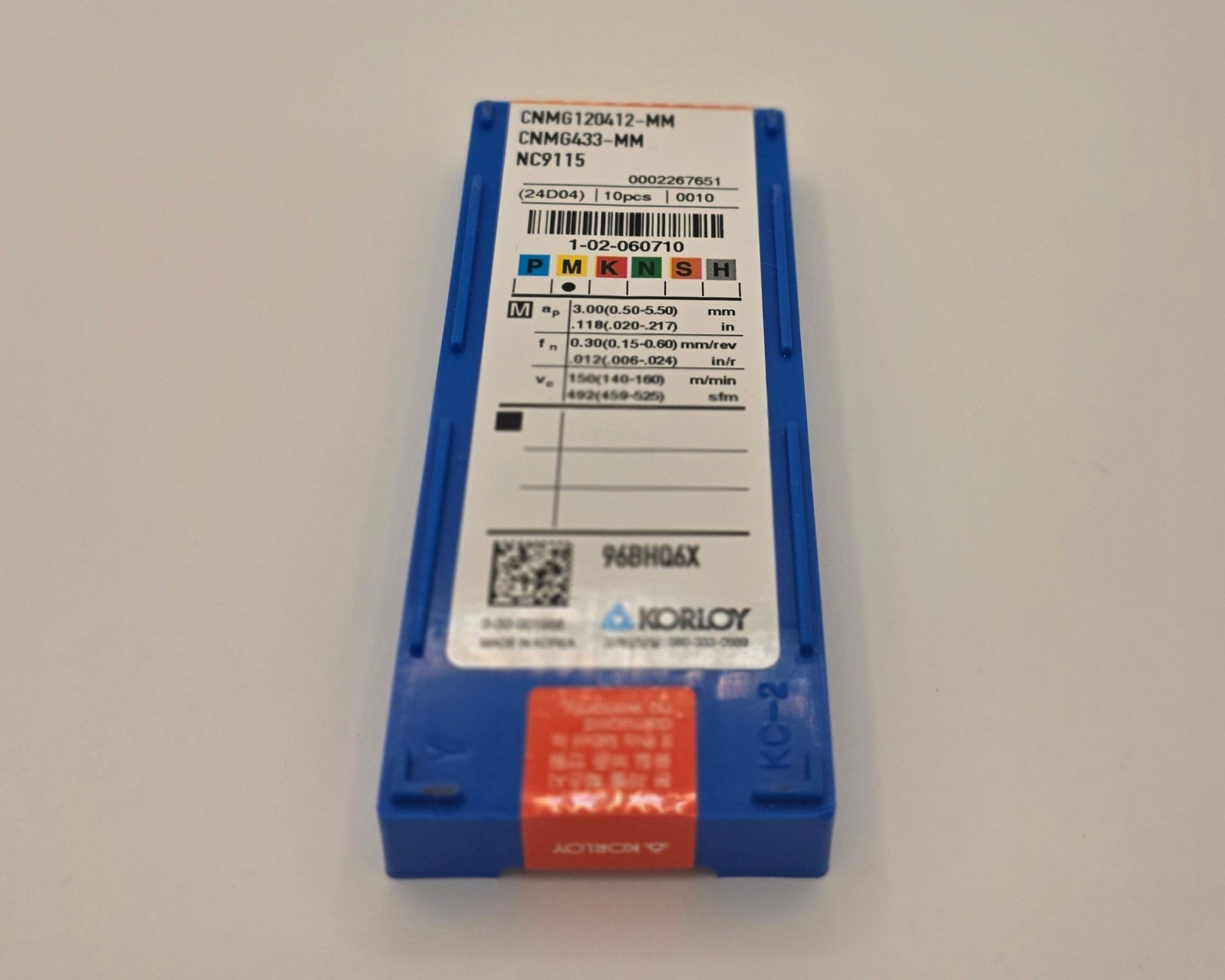

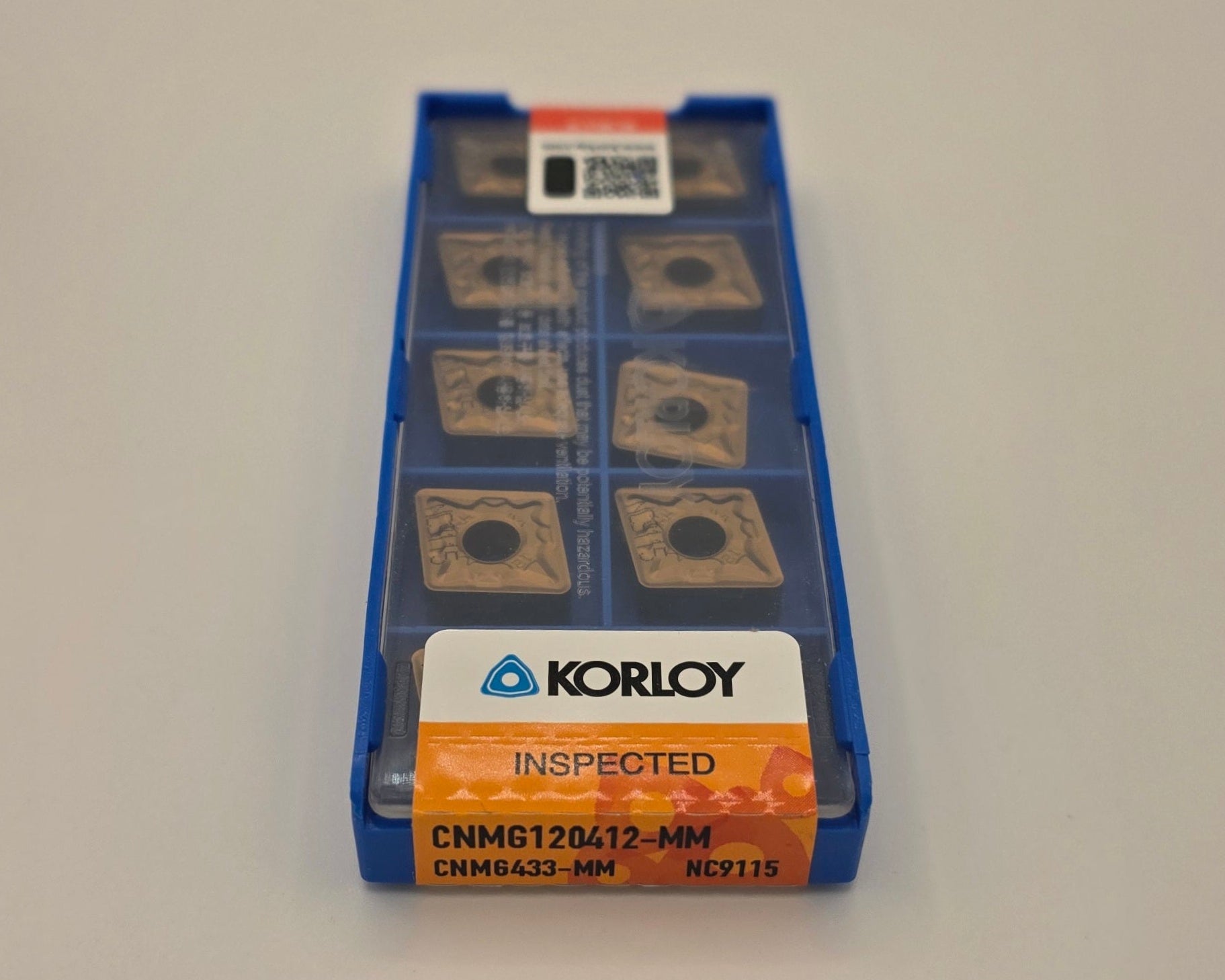

Korloy CNMG433-MM NC9115 Carbide Turning Insert (10 Pack)

Product Description

High-performance CNMG433-MM carbide turning insert with Korloy’s NC9115 grade.

Designed for medium turning of stainless steel, the CNMG433-MM combines a strong negative insert geometry with Korloy’s MM chipbreaker. The MM geometry features a dual-land cutting edge that balances sharp cutting performance with edge strength, while its wide chip pockets support stable chip evacuation and help reduce built-up edge, cutting force, and plastic deformation.

NC9115 is a wear-resistant CVD-coated carbide grade developed for productive stainless-steel machining. Within Korloy’s NC9100 series, NC9115 is best suited to stable and continuous cutting conditions, where it provides reliable tool life at elevated cutting speeds. It can be used on austenitic, martensitic, and ferritic stainless steels.

✔ Genuine Korloy Product
✔ Ships from USA — see current availability above
✔ Pack of 10 Inserts
✔ For in-stock orders, dispatch is within 1 business day after payment verification.

Specifications

Manufacturer: Korloy
Insert Style: CNMG433-MM
ISO Code: CNMG120412-MM
Grade: NC9115
Chipbreaker: MM
Application: Medium Cutting
Workpiece Material: Stainless Steel (M)
Recommended Cutting Condition: Continuous to Stable Cutting
Coating: CVD-Coated Carbide
Insert Shape: 80° Diamond
Clearance Angle: 0° Negative
Inscribed Circle: 1/2"
Thickness: 3/16"
Corner Radius: 3/64"
Cutting Direction: Neutral
Number of Cutting Edges: 4
Quantity: 10 Inserts

Korloy recommends the MM chipbreaker at approximately 0.5–5.5 mm depth of cut and 0.12–0.45 mm/rev feed, with nominal recommended values of 3.0 mm and 0.25 mm/rev. Actual parameters should be adjusted for material, rigidity, coolant, and machine conditions.
