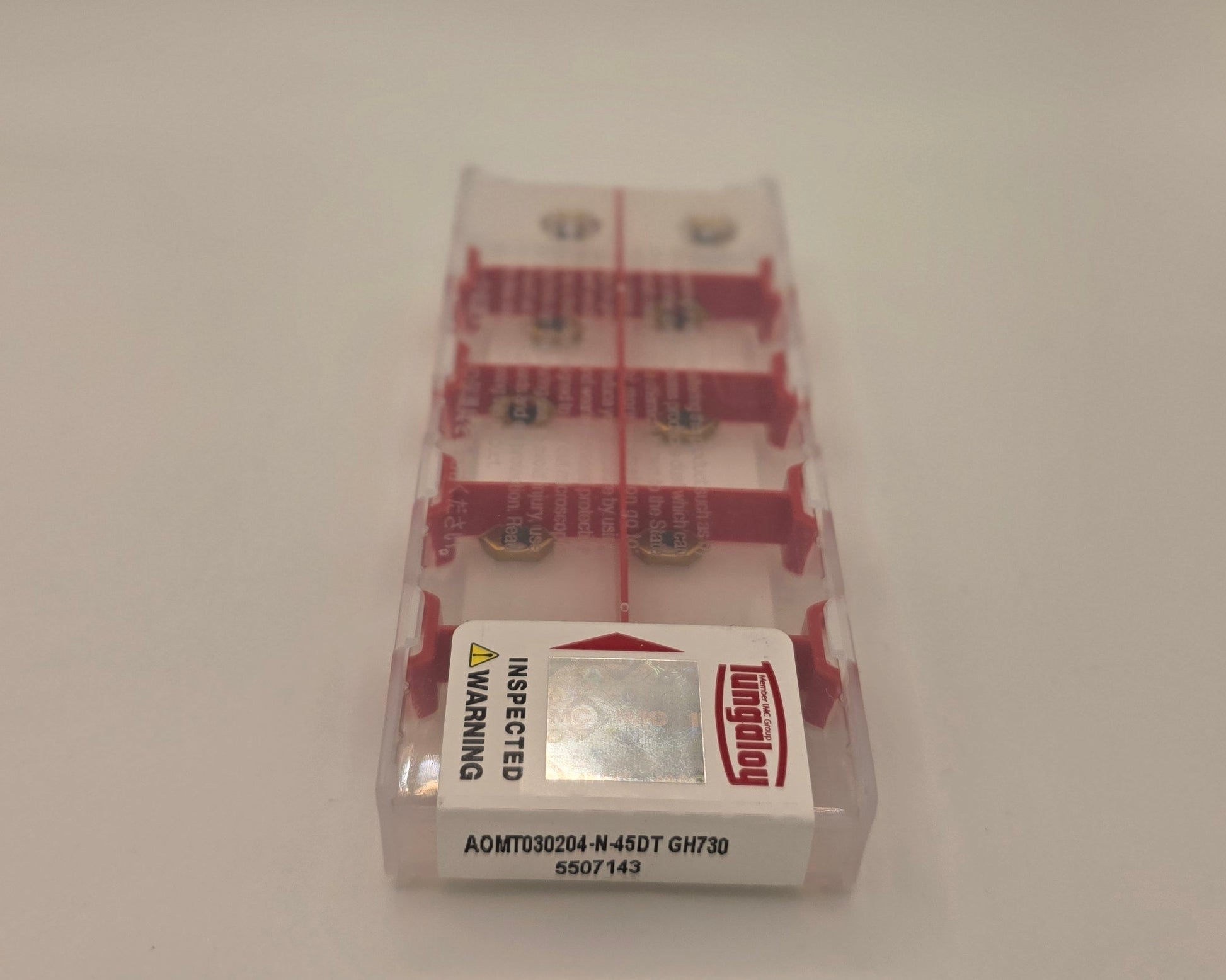

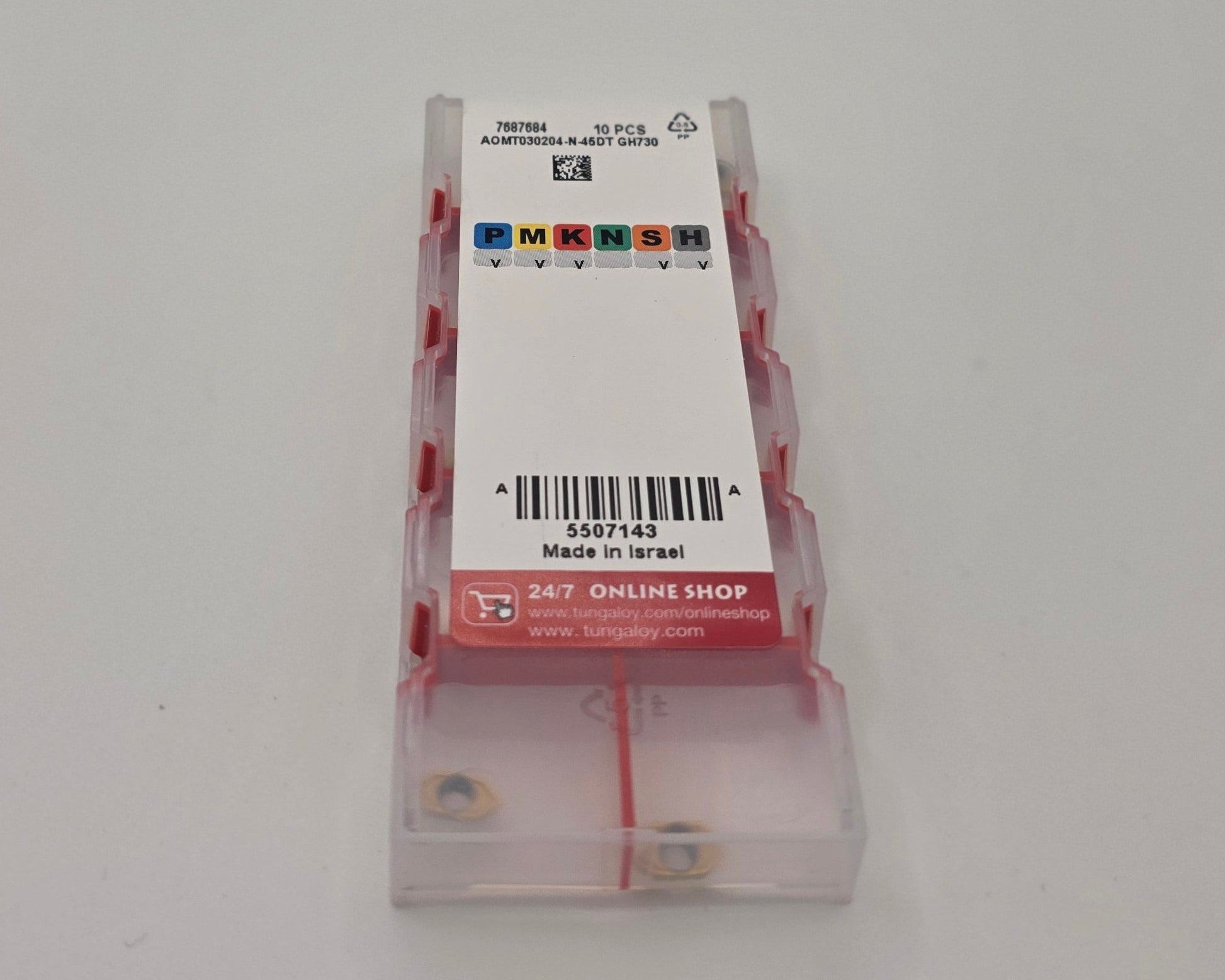

Tungaloy AOMT030204-N-45DT GH730 Carbide Chamfering Insert (10 Pack)

Tungaloy AOMT030204-N-45DT GH730 Carbide Chamfering Insert (10 Pack)

High-performance AOMT030204-N-45DT carbide chamfering insert with Tungaloy’s GH730 grade.

Built for reliable front and back chamfering applications, the AOMT030204-N-45DT with GH730 grade delivers stable cutting performance, strong edge reliability, and dependable tool life across a wide range of workpiece materials. It is designed for compatible Tungaloy DrillMeister chamfering adapters and special combination tools, allowing drilling and chamfering operations to be completed in a single setup.

The 45DT geometry provides a 45° chamfer angle and supports a maximum chamfer width of approximately 2.8 mm. Its positive cutting geometry helps reduce cutting resistance and promotes smooth, consistent chamfering. GH730 is a PVD-coated carbide grade that combines a wear-resistant coating with a tough carbide substrate, providing a strong balance of wear resistance and chipping resistance. Tungaloy recommends this insert geometry for steel, stainless steel, cast iron, non-ferrous materials, and heat-resistant alloys.

- Genuine Tungaloy Product
- In Stock – Ships from USA
- Pack of 10 Inserts
- Ships in 1 Business Day

Specifications

Manufacturer: Tungaloy
Insert Style: AOMT030204-N-45DT
Grade: GH730
Geometry: 45DT
Application: Front and Back Chamfering
Workpiece Material: Steel (P), Stainless Steel (M), Cast Iron (K), Non-Ferrous Materials (N), Heat-Resistant Alloys (S)
Insert Material: Carbide
Coating: PVD Coated
Chamfer Angle: 45°
Maximum Chamfer Width: 2.8 mm
Insert Thickness: 1.59 mm
Cutting Direction: Neutral
Compatible System: Tungaloy DrillMeister Chamfering Adapter
Quantity: 10 Inserts per Pack

Recommended For

Front chamfering operations
Back chamfering operations
Combined drilling and chamfering
Steel components
Stainless steel components
Cast-iron components
Non-ferrous materials
Heat-resistant alloys
CNC machining centers
Applications requiring reduced setup and cycle time

Why Choose GH730?

Strong wear resistance for extended tool life
Tough carbide substrate for reliable edge strength
Good resistance to chipping during chamfering
Smooth cutting action and stable chamfer quality
Suitable for a broad range of workpiece materials
Reliable performance in production machining
Supports combined drilling and chamfering operation
